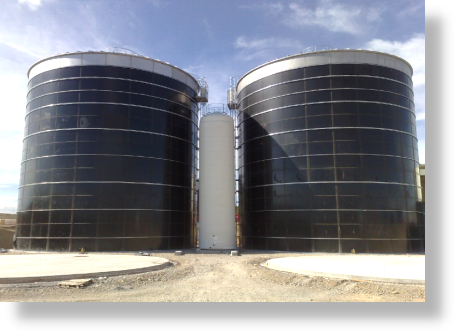

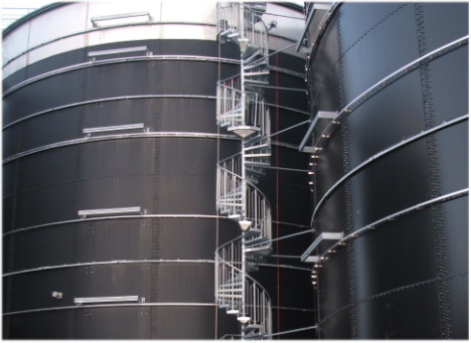

结构组成Structural composition：

裸罐结构介绍Introduction of tanks structure：

产品特点：

(Products Features)

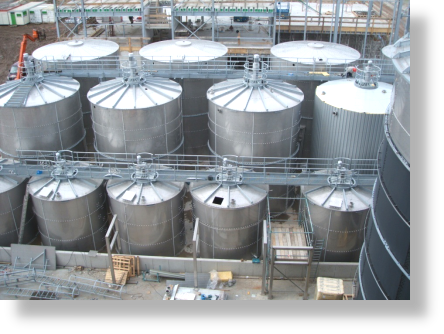

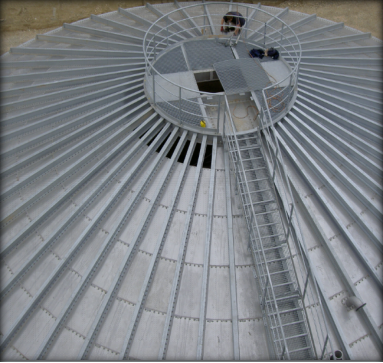

罐顶采用不锈钢结构，螺栓拼接

(Stainless steel structures bolted, used in tanks roof.)

罐子气相区采用不锈钢材质，从材料学上做到彻底防腐

(Stainless steel material used in tanks' upper gas area, for complete anti-corrosion from the degrees of basic materials.)

罐壁采用螺栓拼装，工厂加工制作的标准板

(Factory pre-fabricated standard plates bolted together into the tanks wall.)

拼装板交接处形成罐体骨架结构，交接处材料厚度大于焊接罐壁板厚度，密集的螺栓可承载高强度的剪切应力

(Joint area of bolted tank plates forms skeleton support structure, Material thickness of joint area is larger than welded tank plates, Dense bolts in tank body can bear high strength shear stress.)

耐候密封胶

(Weatherability sealant)

罐体提升装置保证安装过程的平稳提升，降低应力集中

(Lifting equipment ensures stable lift of tank body during installation process, for decreasing stress concentration.)

设计原理：强度的保证—轻型结构设计

(Design principle: Ensurance of high-strength: light-weight structure design)

轻型结构设计特点：

(Design features of light-weight structures)

骨架承载重力、剪切、水压等

(Bone structure bears weight, shear stress, water pressure etc.)

罐壁板承载水压

(Tank wall plates bears water pressure)

材质的重量降低大大减少了重力承载

(Light-weight material decrease largely the weight bearing capacity.)

骨架结构保证了强度，同时骨架结构可以释放应力集中，减小负荷的冲击性

(Bone support structure ensures high strength, at the same time releasing concentration force for decreasing bearing loads impact force.)

细节—生产加工

(Details-Fabrication)

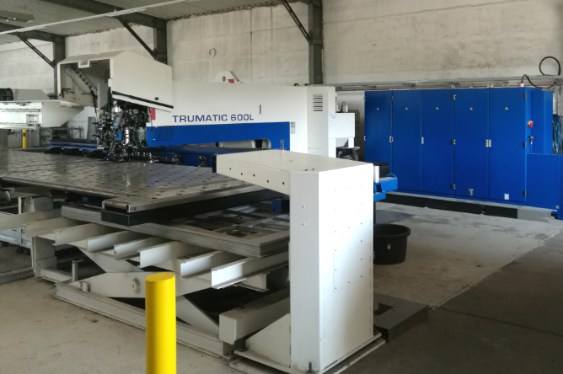

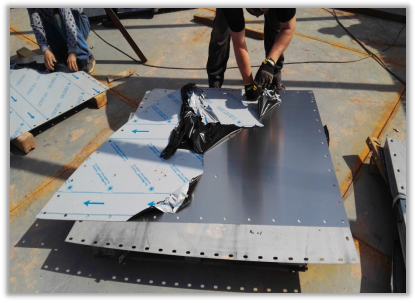

先进的数控激光切割机，由专业的技术人员操作，保证切割精度

Advanced digital-comtrol laser cutting machine, operated by professional technician for ensuring the cutting precious dimension.

先进的数控激光切割机，由专业的技术人员操作，保证切割精度

(Advanced digital-comtrol laser cutting machine, operated by professional technician for ensuring the cutting precious dimension.)

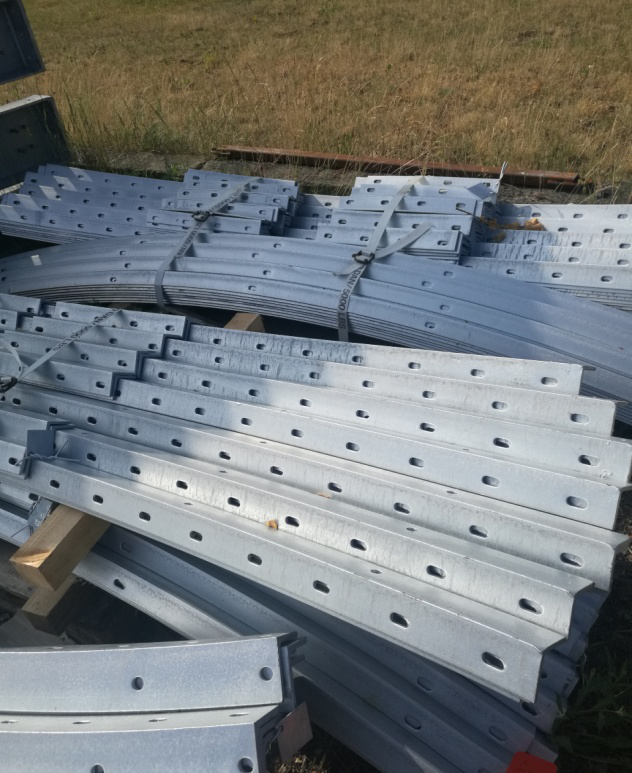

细节—货到施工现场

(Details-Products transfered to installation site)

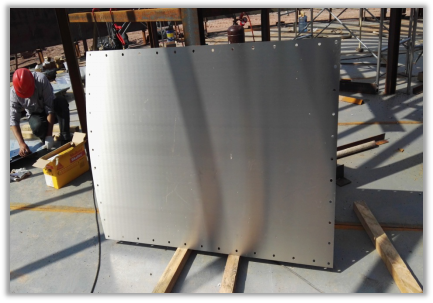

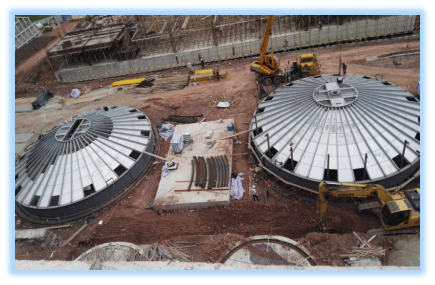

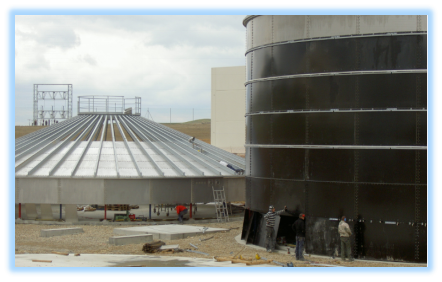

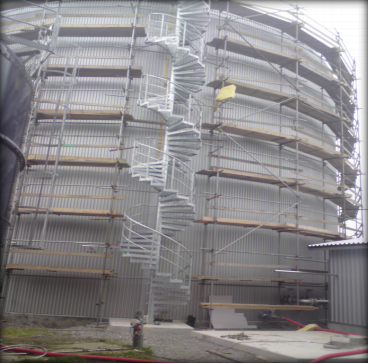

细节—货到现场

(Details-Products on-site)

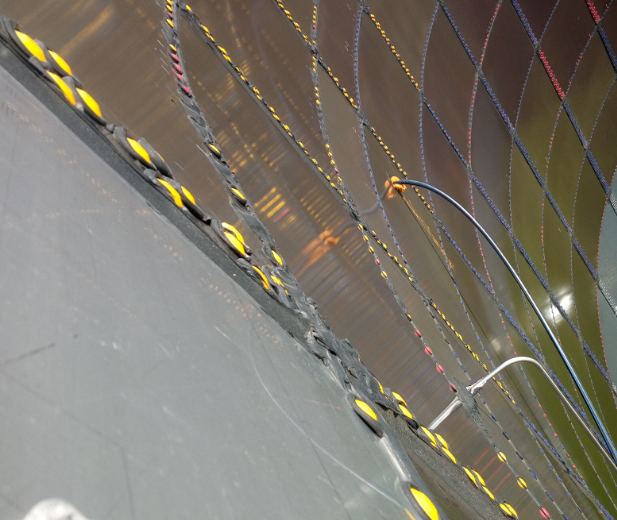

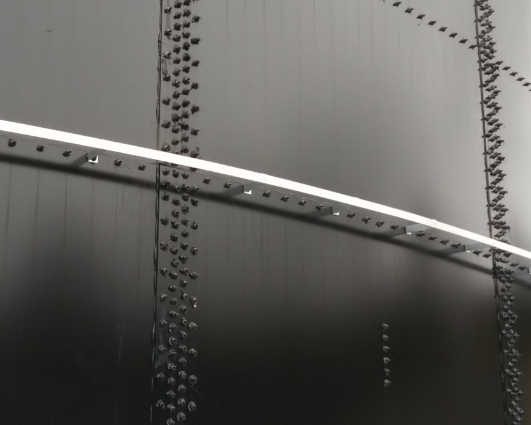

细节—密封胶

(Details-Sealant)

密封胶耐候、耐腐蚀

(Weatherability, Anti-corrosion of Sealant)

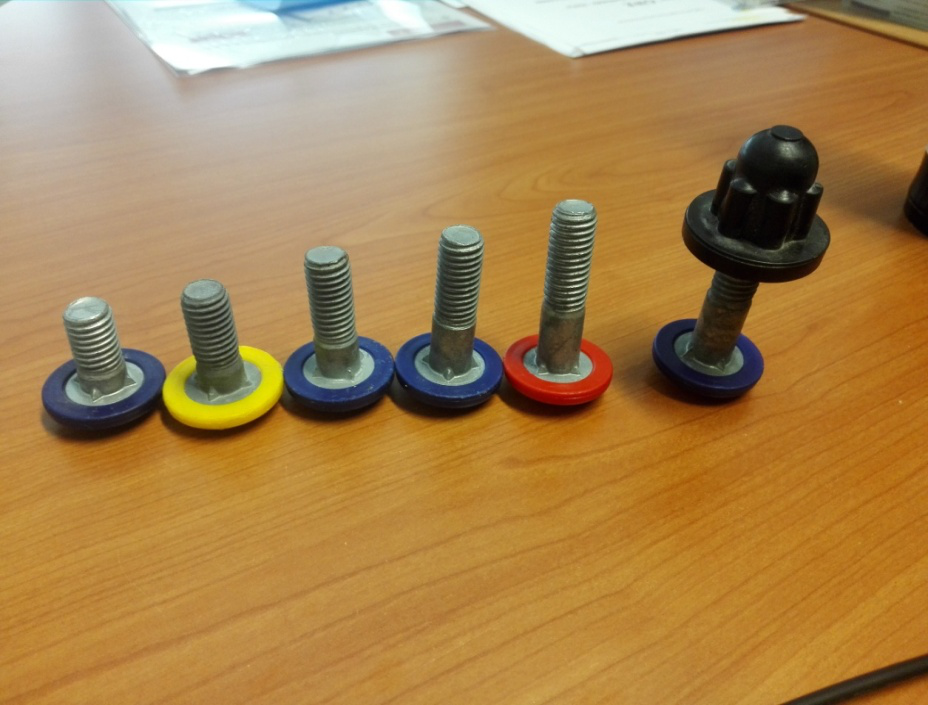

细节—螺栓

(Details-Bolts)

液相区采用圆平头带翼（平头包塑胶盖）镀锌螺栓，气相区和罐顶采用不锈钢螺栓

(Galvanized bolts, round flat head with plastic cap and wings, used in liquid ares, Stainless steel bolts used in air area and tank roof)

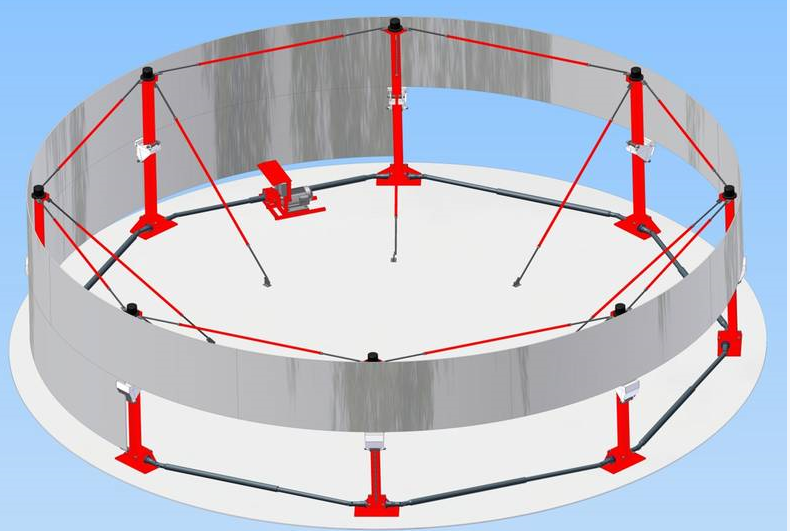

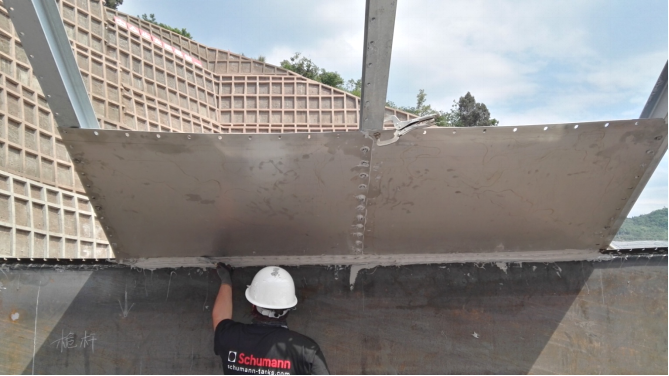

细节—提升装置安装

(Details-Lifting equipment for installation)

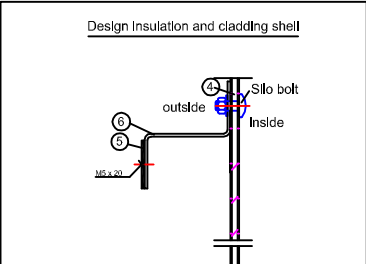

细节—保温安装

(Details-Insulation layers installation)

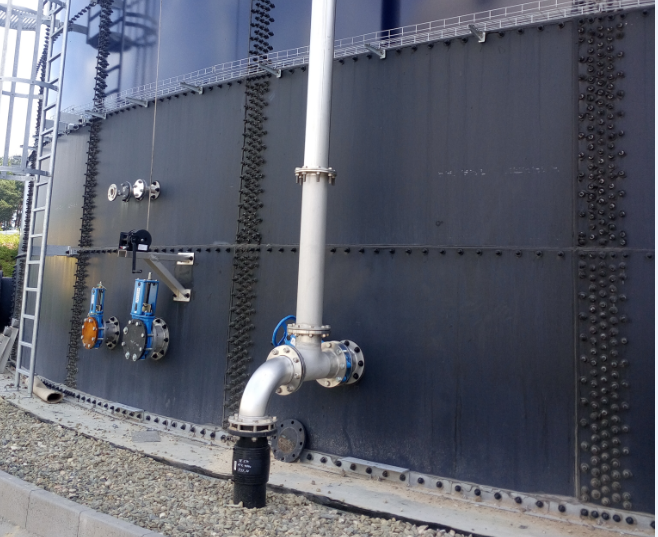

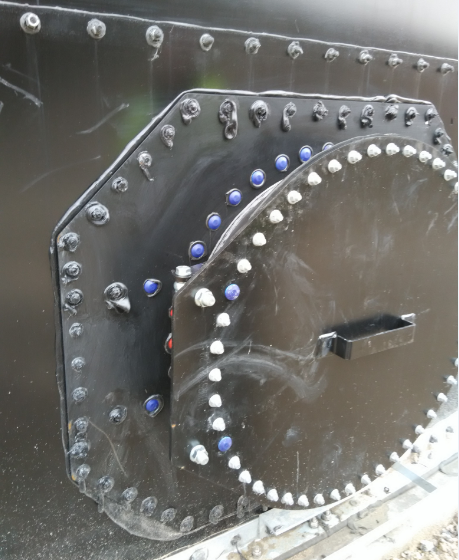

细节—附件链接

(Details-Annex installation)

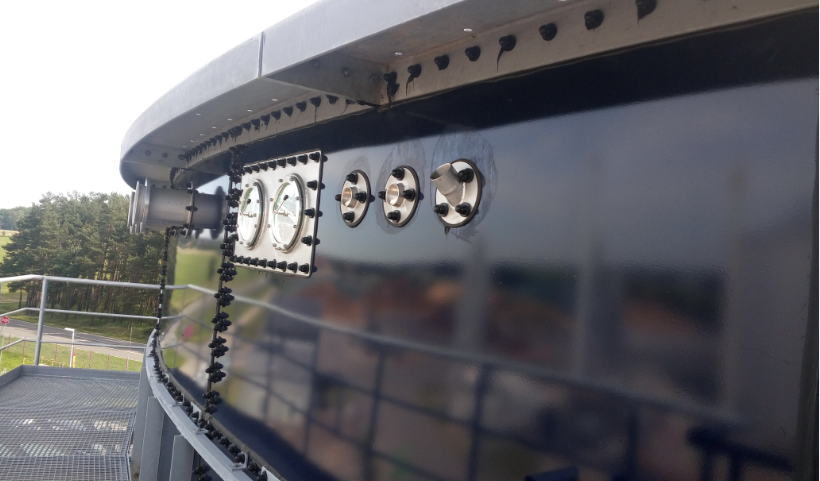

细节—附件链接

(Details-Appenex installation)

细节—附件链接

(Details-Appenex installation)

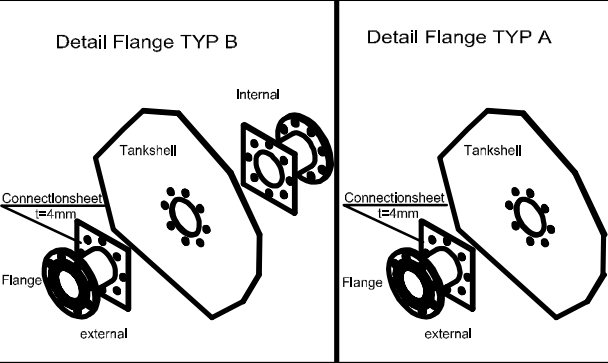

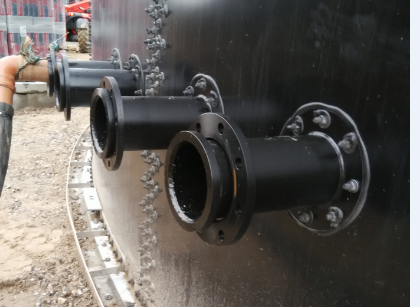

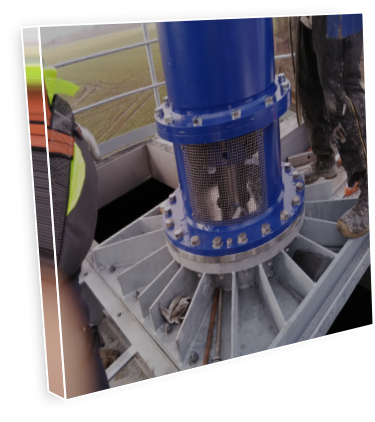

细节—搅拌器安装法兰

(Details-Agitator installation flange)

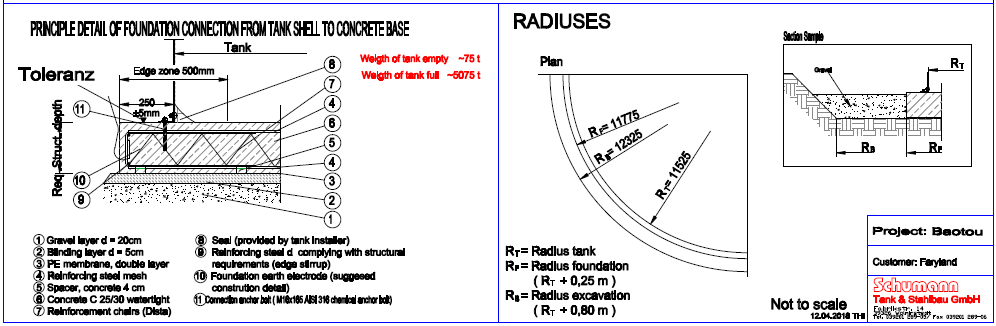

细节—土建地基基础要求

(Details-Concrete base construction requirement)
